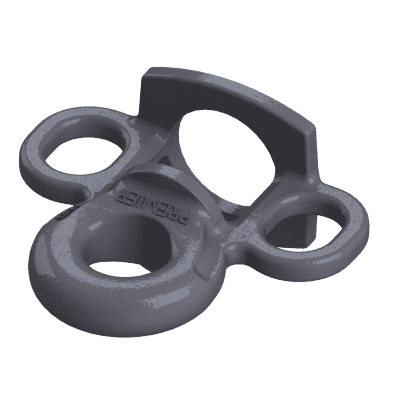

108 Weld-On Drawbar Eye

Description

MODELS

Model #	Part #	Description
108	10000706	Drawbar Eye, Weld-On, 2 3/8" ID

ACCESSORY PARTS

Model #	Part #	Description
14005	10000053	Wear Gage
14032	10000075	Wear Gage

SPECIFICATIONS

Maximum Gross Trailer Weight	100,000 lbs. (45,359 kg)
Maximum Tongue Weight	15,000 lbs. (6,804 kg)
Inside Diameter	2 3/8 in. (60 mm)
Unit Weight	15 lbs. (6.8 kg)

Drawings

Installation

107 108 309 Drawbar Eye Installation

Optional Accessories

Custom Truck Accessories

Wear Gages
