Description
MODELS
| Model # | Part # | Description |

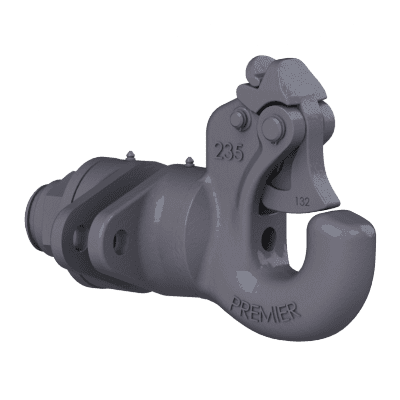

| 235NT | 10001113 | 235NT Coupling |
ACCESSORY & REPLACEMENT PARTS
| Model # | Part # | Description |
| 135PK | 10001054 | Parts Kit |
| 14011 | 10000059 | Wear Gage |
| 14026 | 10000071 | Wear Gage, Latch Gage Bar |
SPECIFICATIONS
| Maximum Gross Trailer Weight | 60,000 lbs. (27,216 kg) | |
| Maximum Tongue Weight | 12,000 lbs. (5,443 kg) | |
| Ultimate Latch Capacity | 20,000 lbs. (9,072 kg) | |
| Maximum Eye X-Section | 1 11/16 in. (43 mm) | |
| Minimum Eye Opening | 2 1/8 in. (54 mm) | |
| Unit Weight | 32 lbs. (14.5 kg) |
-
