Description
MODELS
| Model # | Part # | Description | |

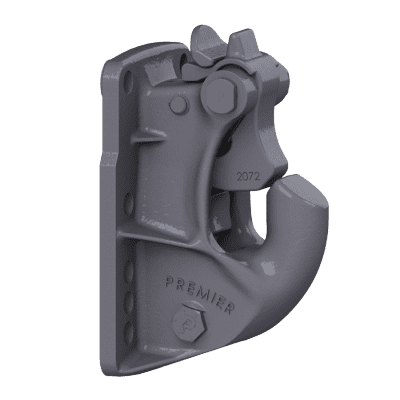

| 2400 | 10004713 | 2400 Coupling & 271 Thimble | |
| 2400NS | 10000288 | 2400 Coupling, without the 279 Shoe | |
| 2400A | 10004715 | 2400 Coupling, 508 Bolt Kit, 281Air Chamber, 467 Air Chamber Adapter Bracket, 271 Thimble | |
| 2400A-2 | 10004716 | Same as 2400A, without the 508 Bolt Kit | |
| 2400AF | 10004718 | Same as 2400A, with a 467F instead of a 467 Air Chamber Adapter Bracket | |
| 2400EL | 10004719 | 2400 Coupling with Extended Life (EL) latch direct-inject lubrication ports | |
| 2400ELA | 10004721 | 2400EL Coupling, 508 Bolt Kit, 281 Air Chamber, 467 Air Chamber Adapter Bracket, 271 Thimble | |
| 2400A-467H | 10004717 | Same as 2400A, with a 467H instead of a 467 Air Chamber Adapter Bracket |
KIT COMPONENTS & ACCESSORY PARTS
| Model # | Part # | Description |
| 271 | 10000107 | Thimble |
| 279 | 10000312 | Shoe |
| 508 | 10000155 | Bolt Kit |
| 281 | 10000116 | Air Chamber, Type 24 |
| 282 | 10000122 | Air Chamber, Type 30 |
| 467 | 10000135 | Air Chamber Adapter Bracket (2 3/4 in. overall length) |
| 467F | 10000138 | Air Chamber Adapter Bracket (5 1/2 in. overall length) |
| 467H | 10000140 | Air Chamber Adapter Bracket (3/4 in. overall length) |
| 2000PK | 10000737 | Parts Kit |
| 2000PK-EL | 10000739 | Parts Kit, Extended Life (EL) |
| 438 | 10004779 | Drawbar Guide Set (Left & Right Sides Incl.) |
| 438L | 10000131 | Drawbar Guide, Left Side Only |
| 438R | 10000133 | Drawbar Guide, Right Side Only |
| 14014 | 10000062 | Wear Gage |
| 14026 | 10000071 | Wear Gage, Latch Gage Bar |
SPECIFICATIONS
| Maximum Gross Trailer Weight | 100,000 lbs. (45,359 kg) | |
| Maximum Tongue Weight | 20,000 lbs. (9,072 kg) | |
| Ultimate Latch Capacity | 60,000 lbs. (27,216 kg) | |
| Maximum Eye X-Section | 1 13/16 in. (46 mm) | |
| Minimum Eye Opening | 2 3/8 in. (60 mm) | |
| Unit Weight | 34.3 lbs. (15.6 kg) |
-
