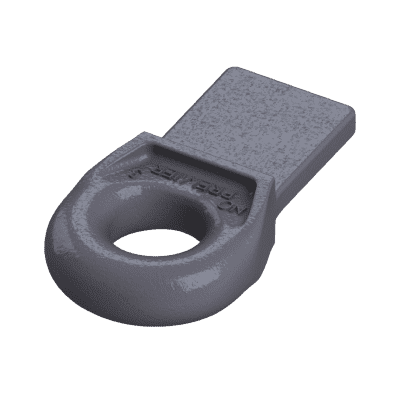

3 Weld-On Drawbar Eye

Description

MODELS

Model #	Part #	Description
3	10000788	Drawbar Eye, Weld-On, 2 1/16" ID

ACCESSORY PARTS

Model #	Part #	Description
14002	10000050	Wear Gage

SPECIFICATIONS

Maximum Gross Trailer Weight	70,000 lbs. (31,751 kg)
Maximum Tongue Weight	10,500 lbs. (4,763 kg)
Inside Diameter	2 1/16 in. (52 mm)
Unit Weight	7.7 lbs. (3.5 kg)

Drawings

Installation

3 11 Drawbar Eye Installation
