Description
MODELS
| Model # | Part # | Description |

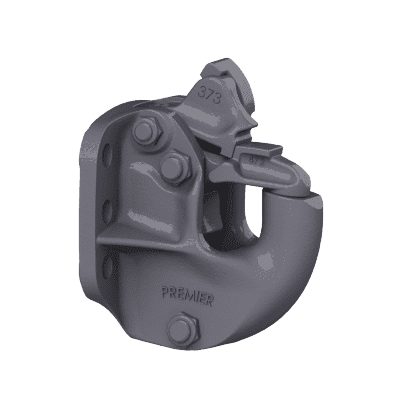

| 370 | 10004757 | 370 Coupling & 271 Thimble |

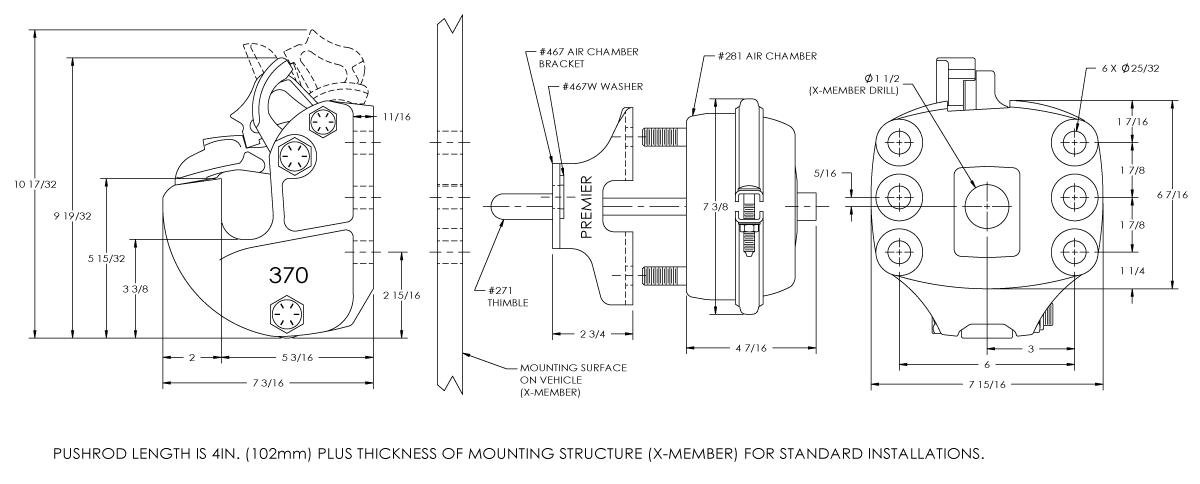

| 370A | 10004759 | 370 Coupling, 502 Bolt Kit, 281 Air Chamber, 467 Air Chamber Adapter Bracket, 271 Thimble |
| 370A-2 | 10004760 | Same as 370A, without the 502 Bolt Kit |
| 370A-282 | 10004761 | Same as 370A, with 282 Air Chamber instead of 281 |
| 370A-467H | 10004762 | Same as 370A, with 467H Air Chamber Adapter Bracket instead of 467 |
| 370AF | 10004763 | Same as 370A, with 467F Air Chamber Adapter Bracket instead of 467 |
KIT COMPONENTS & ACCESSORY PARTS
| Model # | Part # | Description |
| 271 | 10000107 | Thimble |
| 502 | 10000150 | Bolt Kit |
| 281 | 10000116 | Air Chamber, Type 24 |
| 282 | 10000122 | Air Chamber, Type 30 |
| 467 | 10000135 | Air Chamber Adapter Bracket (2 3/4 in. overall length) |
| 467F | 10000138 | Air Chamber Adapter Bracket (5 1/2 in. overall length) |
| 467H | 10000140 | Air Chamber Adapter Bracket (3/4 in. overall length) |
| 370PK | 10000325 | Parts Kit |
| 279PK | 10000315 | Parts Kit (for 279 Shoe) |
| 378 | 10004766 | Drawbar Guide Set (Left & Right Sides Incl.) |
| 378L | 10000124 | Drawbar Guide, Left Side Only |
| 378R | 10000129 | Drawbar Guide, Right Side Only |
| 14011 | 10000059 | Wear Gage |
| 14026 | 10000071 | Wear Gage, Latch Gage Bar |
SPECIFICATIONS
| Maximum Gross Trailer Weight | 90,000 lbs. (40,823 kg) | |
| Maximum Tongue Weight | 18,000 lbs. (8,165 kg) | |
| Ultimate Latch Capacity | 20,000 lbs. (9,072 kg) | |
| Maximum Eye X-Section | 1 13/16 in. (46 mm) | |
| Minimum Eye Opening | 2 3/8 in. (60 mm) | |
| Unit Weight | 30 lbs. (13.6 kg) |
-
