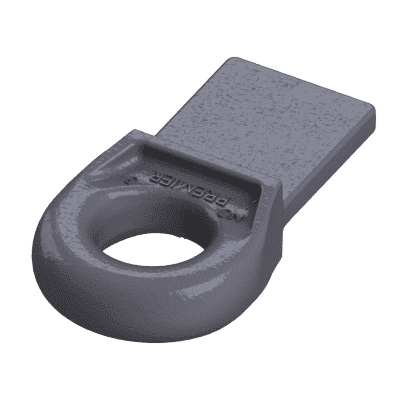

5 Weld-On Drawbar Eye

Description

MODELS

Model #	Part #	Description
5	10000836	Drawbar Eye, Weld-On, 2 5/8" ID

ACCESSORY PARTS

Model #	Part #	Description
14005	10000053	Wear Gage
14008	10000056	Wear Gage

SPECIFICATIONS

Maximum Gross Trailer Weight	90,000 lbs. (40,823 kg)
Maximum Gross Trailer Weight	13,500 lbs. (6,123 kg)
Inside Diameter	2 5/8 in. (67 mm)
Unit Weight	11.7 lbs. (5.3 kg)

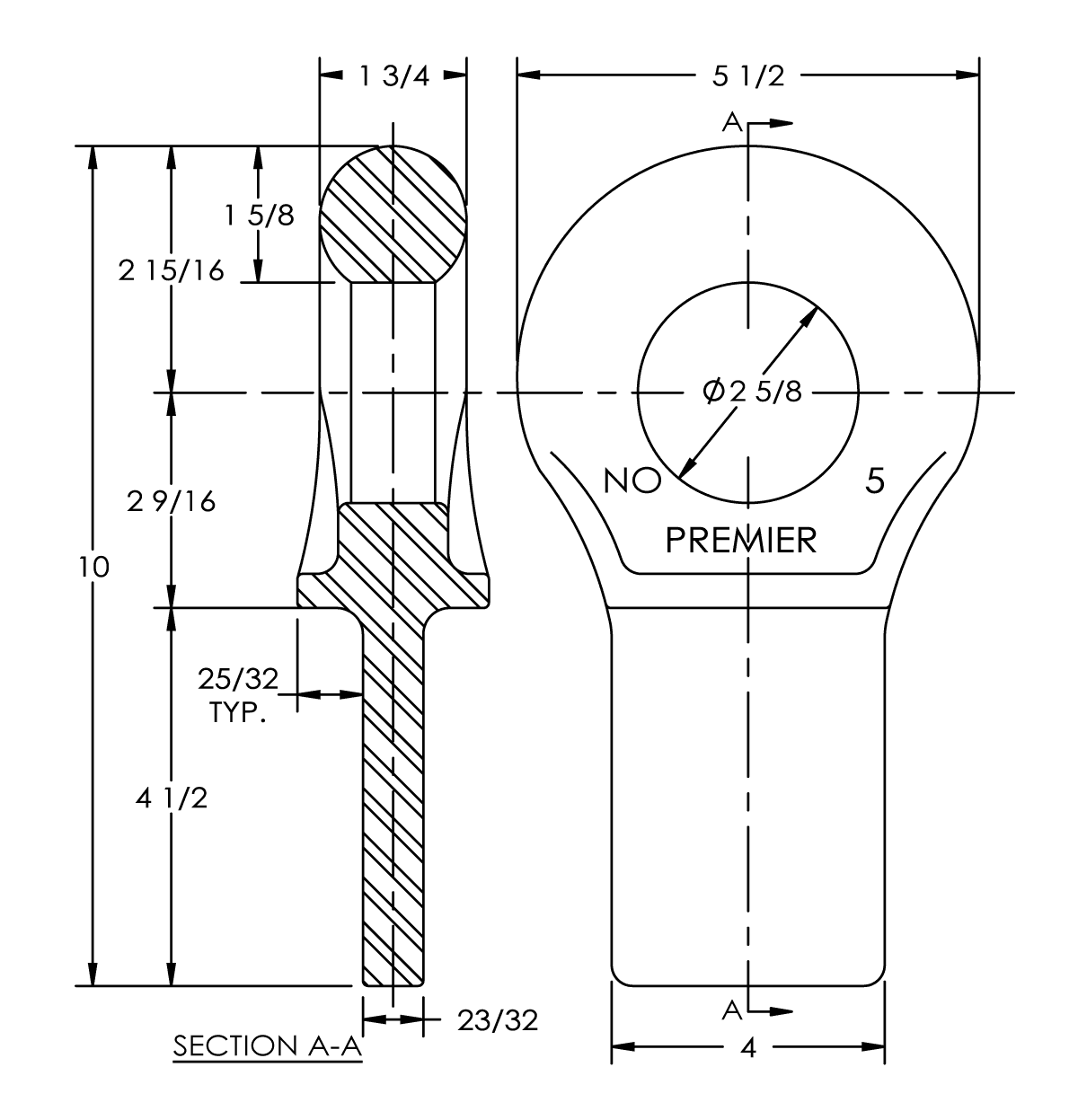

Drawings

Installation

4 5 Drawbar Eye Installation
