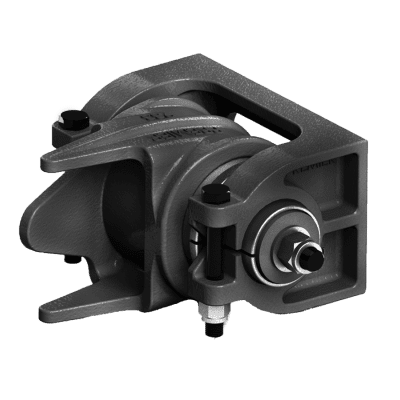

930A Hinge Assembly

Premier’s 930A Hinge Assembly is wise choice for your pulling needs up to 150,000 lbs. It comes standard with poly bushings for a longer service life. The 930A can be purchased as a PAIR only. Check out the Installation Guide tab below for more information and order from a distributor today!
Designed For: 2 inch x 4 inch rectangular tubing

Category:

Description

MODELS

Model #Part #DescriptionParts Included per HINGE
930A10001024 PAIR Hinges, Poly Bushings321C Locknut, 321D Flat Washer (2), 351 Bolt/Nut (2), 434A Spacer, 921B Bolt, 931 Bracket, 932 Pin, 933 Housing, 934A Bushing, 938 Elastomer Washer (2), 939 Flange (2)

930A SPECIFICATIONS

Max. Gross Trailer Weight (PAIR)150,000 lbs. (68,039 kg)
Unit Weight (PAIR)59.2 lbs. (26.8 kg)

REPLACEMENT PARTS

Model #Part #Description
321C10000946Locknut
321D10000947Flat Washer
351*10004756Bolt & Nut*Includes Bolt (1) & Nut (1)
434A10000982Spacer
921B10001023Bolt
93110001027Bracket
93210001029Pin
93310001030Housing
934A10001032Bushing, Poly
93810001033Elastomer Washer
93910001035Flange

REPLACEMENT PART SPECIFICATIONS

Model #Inside DiameterOutside DiameterLength
934A1 7/8 in.4 1/4 in. Tapered2 1/4 in.
