Bolt Kits

Premier’s individually packaged Bolt Kits make the hardware selection for your Coupling and/or Drawbar Eye fast and easy. All kits (except 159** & 511**) use coarse threaded Grade-8 fasteners and Grade-C crimp style locknuts, for a strong and secure mounting system.  You can access the Installation, Inspection, Operation, and Maintenance guides which contain important information on each of our Coupling & Drawbar Eye website pages.

** 159 Kit has fine threaded Grade-8 fasteners, uses lock washers and standard nuts
*** 511 Kit uses coarse threaded L9 Grade bolts

Description

MODELS

Model #Part #For Use With
50110000149270, 2200, 100
50210000150360, 370, 780, 2300,100-3
50310000151127, 127F, 370B, 570, 580J, 2300B
50410000152570
50510000153770
50710000154200, 200L, 300, 480, 580, 590, 690, 890C, 990
508100001551400, 1400H, 470, 470H, 2400, 2400H, 100-4, 100-4H
50910000156820EL
511***100001582880, 880
159**10000438150, 160, 240
159HD10000442160HD
159HD-L10000446160HD

SPECIFICATIONS

Model #Kit IncludesMax. Mtg. Structure Thickness
501Bolts (2) 2 1/2 in. (2) 2 3/4 in., Locknuts (4)1/2 in. (13 mm)
502Bolts (4) 2 1/2 in. (2) 2 3/4 in., Locknuts (6)1/2 in. (13 mm)
503Bolts (6) 2 1/2 in., Locknuts (6)1/2 in. (13 mm)
504Bolts (6) 2 in., Locknuts (6)1/2 in. (13 mm)
505Bolts (5) 2 1/2 in. (2) 2 3/4 in., Locknuts (7)1/2 in. (13 mm)
507Bolts (4) 2 3/4 in., Locknuts (4)1/2 in. (13 mm)

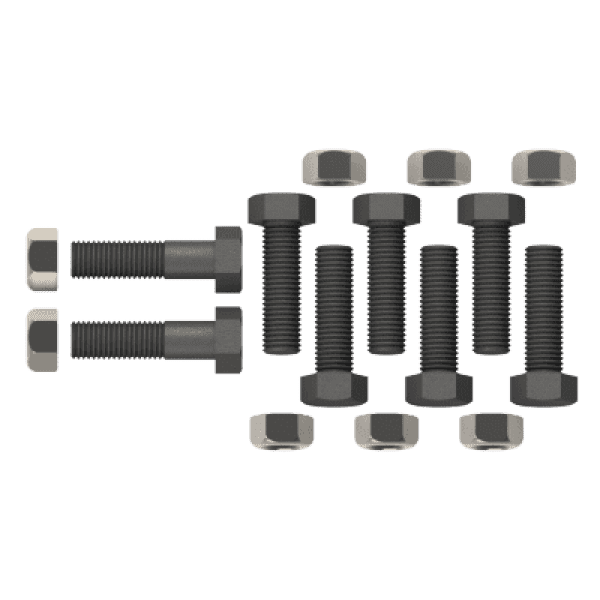

508Bolts (6) 2 1/2 in. (2) 2 3/4 in., Locknuts (8)1/2 in. (13 mm)
509Bolts (2) 2 3/4 in. (2) 3 in., Locknuts (4)1 in. (25 mm)
511***Bolts (6) 3 1/2 in., Locknuts (6)1 5/8 in. (41 mm)
159**Bolts (4) 2 in., Lock washer (4), Hex nut (4)3/4 in. (19 mm)
159HDBolts (4) 2 in., Locknut (4)3/4 in. (19 mm)
159HD-LBolts (4) 2 1/4 in., Locknut (4)3/4 in. (19 mm) to 1 in. (25 mm)
