Description
MODELS
| Model # | Part # | Description |

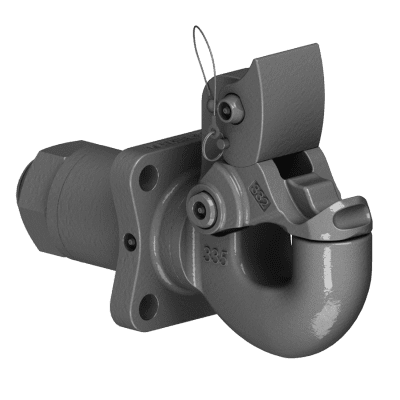

| 335NTEL | 10001166 | 335NTEL Coupling |
ACCESSORY & REPLACEMENT
| Model # | Part# | Description |
| 332PK-EL | 10001153 | Parts Kit, for 335NTEL Latch |
| 333PK-EL | 10001159 | Parts Kit, for 335NTEL Pawl |
| 14020 | 10000068 | Wear Gage |
| 14026 | 10000071 | Wear Gage, Latch Gage Bar |
SPECIFICATIONS
| Maximum Gross Trailer Weight | 110,000 lbs. (48,895 kg) | |
| Maximum Tongue Weight | 20,000 lbs. (9,072 kg) | |
| Ultimate Latch Capacity | 65,000 lbs. (29,484 kg) | |
| Maximum Eye X-Section | 1 3/4 in. (44 mm) | |
| Minimum Eye Opening | 3 in. (76 mm) | |
| Unit Weight | 63.5 lbs. (28.8 kg) |
Compatible Drawbar Eyes
-
Custom Truck Accessories
Wear Gages
<span data-sheets-value="{"1":2,"2":"To determine wear limits, Premier Manufacturing created wear gages that help judge the useful life of couplings, pintle hitches, and drawbar eyes. Available as a complete kit or individually, these gages are easy to use and are a must for maintenance managers and safety personnel.\nIn accordance with Premier Manufacturing and the Federal Motor Carrier Safety Regulations, these were ...
335NTEL Replacement Parts Available
Available as 332PK-EL:
*331: Pin
*332: latch
*332AL: Spring
*332AR: Spring
*785Z-1: Retaining Ring
Available as 333PK-EL
**333: Pawl
**333AL: Spring
**333AR: Spring
**334: Pin
**334-81: Retaining Ring
Available Individually Only (NOT Available in Parts Kit)
***16DS: Drive Screw
***208SPL: Retaining Ring
***336: Safety Pin & Cable
***337NTF: Nylatron Washer
***337NTR: Nylatron Washer
***416K: Locknut
***602: Zerk Fitting
Below are the Compatible Drawbar Eyes, to see the full reference chart click here.
-
Drawbar Eyes
238DB Bolt-On Drawbar Eye Product Discontinued
The 238DB Bolt-On Drawbar Eye is an exceptional tool for your hauling needs. With a maximum gross trailer weight of 100,000 lbs. and a maximum tongue weight of 8,000 lbs., it is perfect for a variety of mid-to-heavy-duty applications. Don’t forget to check the corresponding wear gage (model # 14005) listed under the Optional Accessories tab below.
<button class="cswidget" data-csi_utm_campaign="[]" data-csi_utm_medium="[]" ...
-
Drawbar Eyes
245DB-3 Bolt-On Drawbar Eye
The 245DB-3 Bolt-On Drawbar Eye is an exceptional tool for your hauling needs. With a maximum gross trailer weight of 100,000 lbs. and a maximum tongue weight of 8,000 lbs., it is perfect for a variety of mid-to-heavy-duty applications. Don’t forget to check the corresponding wear gage (model # 14005) listed under the Optional Accessories tab below.
<button class="cswidget" data-csi_utm_campaign="[]" data-csi_utm_medium="[]" ...
-
Drawbar Eyes
300 Bolt-On Drawbar Eye
Premier Manufacturing’s 300 bolt-on drawbar eye is an exceptional addition to your trucking needs. It features a maximum gross trailer weight of 100,000 lbs. and a maximum tongue weight of 15,000 lbs. Don’t forget to check the corresponding bolt kit (model# 507) and wear gage (model # 14032) listed under the Optional Accessories tab below. Order from a distributor today!
<button ...
-
Drawbar Eyes
304 Weld-On Drawbar Eye
The 304 Weld-On Drawbar Eye Order from Premier Manufacturing offers a maximum gross trailer weight of 150,000 lbs and a maximum tongue weight of 15,000 lbs. Find a distributor today!
-
Drawbar Eyes
305 Weld-On Drawbar Eye
The 305 Weld-On Drawbar Eye from Premier Manufacturing is designed for rectangular tubing, features a max gross trailer weight of 150,000 lbs. Order from a distributor today!
Designed For: Rectangular tubing, 2 in. x 4 in. (51 mm x 102 mm) and 4 in. x 4 in. (102 mm x 102 mm) -
Drawbar Eyes
309 Weld-On Drawbar Eye
The 309 Weld-On Drawbar Eye by Premier Manufacturing boasts a maximum gross trailer weight of 150,000 lbs. Locate a distributor in your area today!Designed For: 4 in. (102 mm) round tubing
Additional information
| MATERIAL | |
|---|---|
| MGTW |
