Description
MODELS
| Model # | Part # | Description | Parts Included |

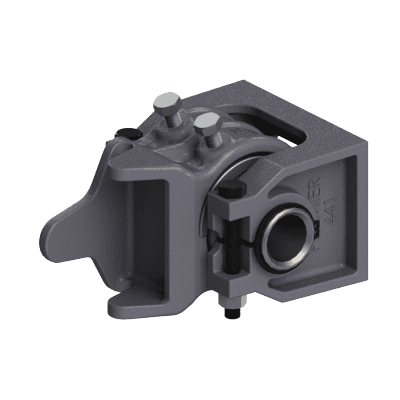

| 455 | 10001016 | PAIR Hinges, Rubber Bushings | 351 Bolt/Nut (2), 452L/452R Housing, 441 Bracket, 442 Pin, 445 Adjustable Shoe, 447 Bolt (2), 448 Bushing, 653 Snap Ring (2) |
| 455A | 10001017 | PAIR Hinges, Poly Bushings | 351 Bolt/Nut (2), 452L/452R Housing, 441 Bracket, 442 Pin, 445 Adjustable Shoe, 447 Bolt (2), 448A Bushing, 653 Snap Ring (2) |
| 455L | 10001018 | LEFT Hinge, Rubber Bushing | 351 Bolt/Nut (2), 452L Housing, 441 Bracket, 442 Pin, 445 Adjustable Shoe, 447 Bolt (2), 448 Bushing, 653 Snap Ring (2) |
| 455R | 10001020 | RIGHT Hinge, Rubber Bushing | 351 Bolt/Nut (2), 452R Housing, 441 Bracket, 442 Pin, 445 Adjustable Shoe, 447 Bolt (2), 448 Bushing, 653 Snap Ring (2) |
| 455LA | 10001019 | LEFT Hinge, Poly Bushing | 351 Bolt/Nut (2), 452L Housing, 441 Bracket, 442 Pin, 445 Adjustable Shoe, 447 Bolt (2), 448A Bushing, 653 Snap Ring (2) |
| 455RA | 10001021 | RIGHT Hinge, Poly Bushing | 351 Bolt/Nut (2), 452R Housing, 441 Bracket, 442 Pin, 445 Adjustable Shoe, 447 Bolt (2), 448A Bushing, 653 Snap Ring (2) |
SPECIFICATIONS
| Max. Gross Trailer Weight (PAIR) | 100,000 lbs. (45,359 kg) |
| Unit Weight (PAIR) | 50 lbs. (22.7 kg) |
REPLACEMENT PARTS
| Model # | Part # | Description | |
| 351* | 10004756 | Bolt & Nut | *Includes Bolt (1) & Nut (1) |
| 452L | 10001012 | Housing, Left | |
| 452R | 10001014 | Housing, Right | |
| 441 | 10000994 | Bracket | |
| 442* | 10004780 | Pin | *Includes 653 Snap Rings (2) |
| 445 | 10000997 | Adjustable Shoe | |
| 447 | 10001002 | Bolt | |
| 448 | 10001003 | Bushing, Rubber | |
| 448A | 10001004 | Bushing, Poly | |
| 653 | 10001022 | Snap Ring |
REPLACEMENT PART SPECIFICATIONS
| Model # | Inside Diameter | Outside Diameter | Length |
| 448 | 2 in. | 3 1/2 in. | 1 3/4 in. |
| 448A | 2 in. | 3 1/2 in. | 1 3/4 in. |
-
