Description
MODELS
| Model # | Part # | Description |
| 580RK | 10001199 | Repair Kit |
HANDLE ASSEMBLY MODELS
| Model # | Part # | Description | Includes |
| 581 | 10004793 | Handle Assembly | 581A Handle, 581C Bushing, 375A Locknut |

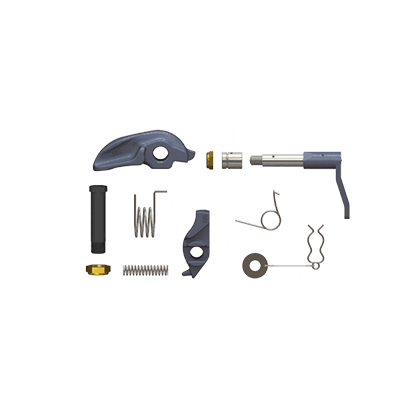

580RK PARTS KIT CONTENTS
| Model # | Part # | Description |
| 266 | 10000290 | Spring |
| 375A | 10000347 | Locknut |
| 387 | 10000350 | Locknut |
| 581A | 10001201 | Handle |
| 581BB | 10001203 | Clip & Cable |
| 581C | 10001206 | Bushing |
| 582 | 10000371 | Latch |
| 582A | 10000372 | Spring |
| 583 | 10001038 | Pawl |
| 584 | 10001215 | Bolt |
| 585 | 10001216 | Pawl Spring |
-
Pintle Hitch & Couplings
580J Coupling
<span data-sheets-value="{"1":2,"2":"With the same rugged features of our 580, the 580J coupling offers a higher load rating and slightly different mounting pattern. Protected internal latch parts, easy lubrication, and easy of operation are trademarks of all our 80-series couplings. With a maximum gross trailer weight of 90,000 lbs., you'll be sure to find many users for this exceptional pintle ...
