Description
MODELS
| Model # | Part # | Description |

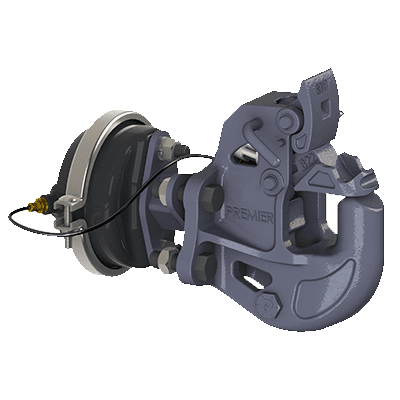

| 820ELA | 10004805 | 820EL Coupling, 834K Airline Kit, 509 Bolt Kit, 281 Air Service Chamber, 267 Air Chamber Adapter Bracket, 271 Thimble |
KIT COMPONENTS & ACCESSORY PARTS
| Model # | Part # | Description |
| 267 | 10000098 | Air Chamber Adapter Bracket |
| 271 | 10000107 | Thimble |
| 281 | 10000116 | Air Chamber, Type 24 (8 in. Pushrod) |
| 281L | 10000120 | Air Chamber, Type 24 (12 in. Pushrod) |
| 509 | 10000156 | Bolt Kit |
| 820PK-EL | 10000394 | Parts Kit |
| 834K | 10000496 | Air Line Kit |
| 14014 | 10000062 | Wear Gage |
| 14026 | 10000071 | Wear Gage, Latch Gage Bar |
SPECIFICATIONS
| Maximum Gross Trailer Weight | 100,000 lbs. (45,359 kg) | |
| Maximum Tongue Weight | 20,000 lbs. (9,072 kg) | |
| Ultimate Latch Capacity | 60,000 lbs. (27,216 kg) | |
| Maximum Eye X-Section | 1 13/16 in. (46 mm) | |
| Minimum Eye Opening | 2 3/8 in. (60 mm) | |
| Unit Weight | 48.8 lbs. (22.1 kg) |
-
