820PK-EL Extended Life Parts Kit

Premier’s 820PK-EL Parts Kit is used to maintain our 820EL Extended Life Couplings. You can access the 820EL Installation, Inspection, Operation, and Maintenance guide by clicking on the Compatible Couplings tab below.  Our Install Guides contain important safety and maintenance information. Need just the airline kit? Check out the Similar or Alternatives tab below for ordering information on our 834K Air Line Parts Kit.

Description

MODELS

Model #Part #Description
820PK-EL10000394Parts Kit, Extended Life

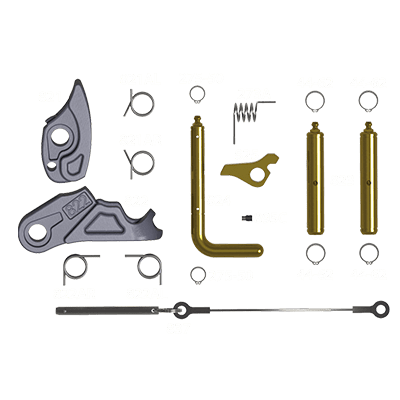

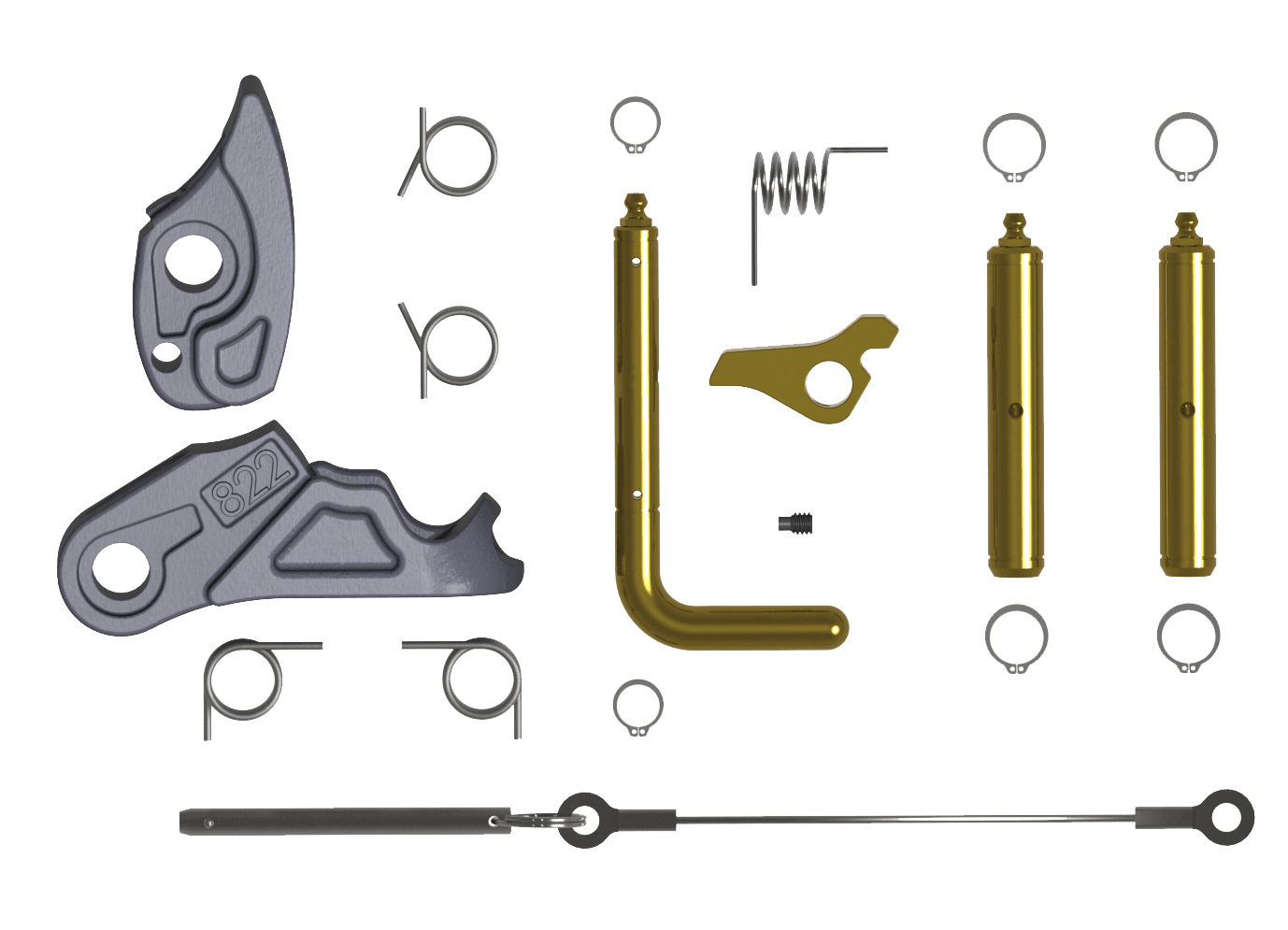

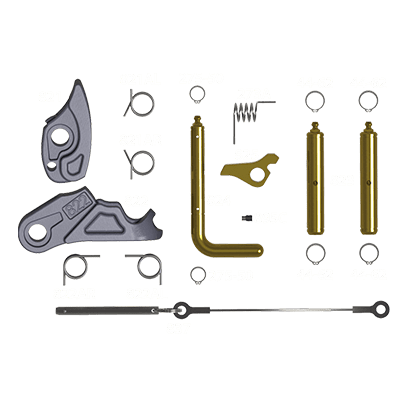

PARTS KIT CONTENTS

Model #Part #Description
273A*10000302Spring
275-50*10000311Retaining Ring, 1/2" (2)
44-62*10000353Snap Ring, 5/8" (4)
821**N/APawl
821AL**N/ASpring, Pawl (Left)
821AR**N/ASpring, Pawl (Right)
822**N/ALatch
822AL**N/ASpring, Latch (Left)
822AR**N/A Spring, Latch (Right)
823*10004809Pin, Latch (2) (44-62 (2) Snap Rings Incl.)
824*10004810Handle, Pawl (275-50 (2) Retaining Rings Incl.)
825**N/ALocking Pawl
837*10000038Safetv Pin & Cable
895C**N/ASet Screw

*Available in 820PK-EL & Individually
**Not Available for Sale Individually

  • Custom Truck Accessories

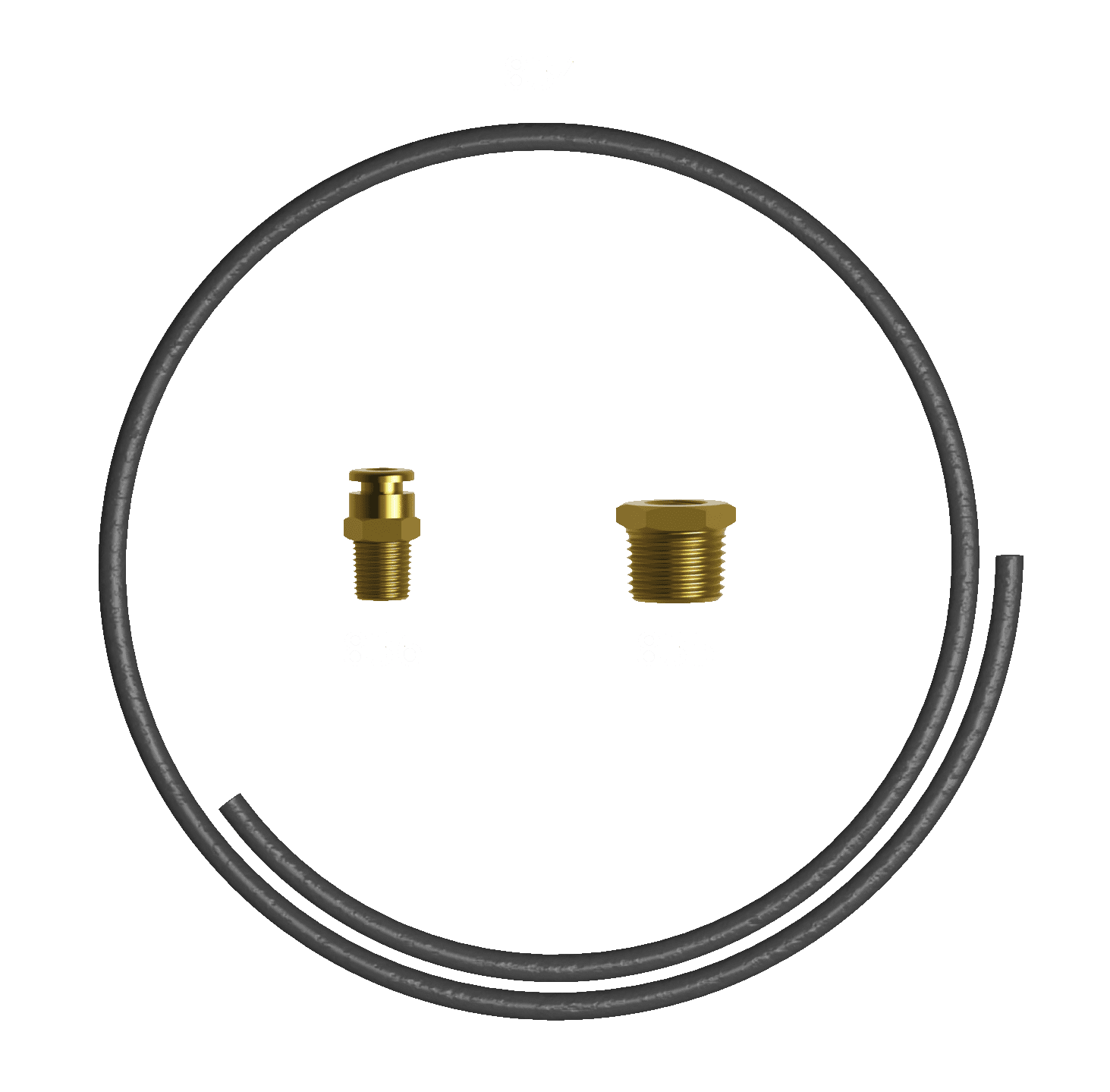

    834K Air Line Parts Kit
