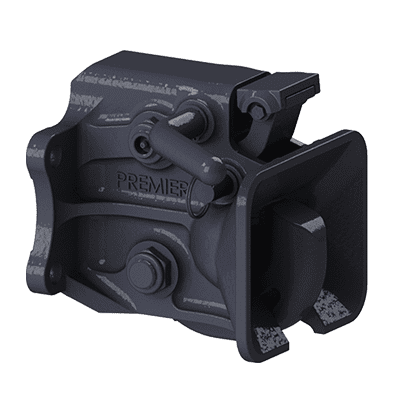

Description
MODELS
| Model # | Part# | Description |
| 990L | 10005632 | 990L Coupling, Left-side |
| 990R | 10005633 | 990R Coupling, Right-side |
| 990 | 10005631 | PAIR 990 Couplings, Left & Right Sides Incl. |
ACCESSORY & REPLACEMENT PARTS
| Model # | Part# | Description |
| 200L | 10000741 | Drawbar Eye, Designed for use with C-Dollies |
| 507 | 10000154 | Bolt Kit |
| 990PK-HK | 10006633 | Hook Parts Kit |
| 990PK-LK | 10006636 | Latch Parts Kit |
| 14011 | 10000059 | Wear Gage |
| 14026 | 10000071 | Wear Gage, Latch Gage Bar |
SPECIFICATIONS
| Maximum Gross Trailer Weight | 100,000 lbs. (45,359 kg) |
| Maximum Tongue Weight | 18,000 lbs. (8,165 kg) |
| Ultimate Latch Capacity | 18,000 lbs. (8,165 kg) |
| Maximum Eye X-Section | 1 13/16 in. (46 mm) |
| Minimum Eye Opening | 2 3/8 in. (60 mm) |
| Model Weight | 50.5 lbs (22.9 kg) |
-
