Description
MODELS
| Model # | Part # | Description |

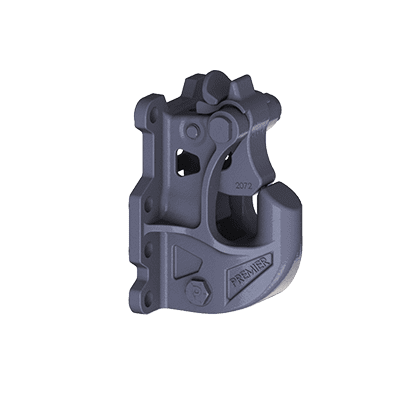

| 1400H | 10005676 | 1400H Coupling & 271 Thimble |
| 1400HA | 10005697 | 1400H Coupling,508 Bolt Kit, 281 Air Chamber, 467 Air Chamber Adapter Bracket, 271 Thimble |
| 1400HA-2 | 10005698 | Same as 1400HA, without the 508 Bolt Kit |
KIT COMPONENTS & ACCESSORY PARTS
| Model # | Part # | Description |
| 271 | 10000107 | Thimble |
| 281 | 10000116 | Air Chamber, Type 24 |
| 282 | 10000122 | Air Chamber, Type 30 |
| 467 | 10000135 | Air Chamber Adapter Bracket (2 3/4 in. overall length) |
| 467F | 10000138 | Air Chamber Adapter Bracket (5 1/2 in. overall length) |
| 467H | 10000140 | Air Chamber Adapter Bracket (3/4 in. overall length) |
| 508 | 10000155 | Bolt Kit |
| 2000PK | 10000737 | Parts Kit |
| 438 | 10004779 | Drawbar Guide Set (Left & Right Sides Incl.) |
| 438L | 10000131 | Drawbar Guide, Left Side Only |
| 438R | 10000133 | Drawbar Guide, Right Side Only |
| 14014 | 10000062 | Wear Gage |
| 14026 | 10000071 | Wear Gage, Latch Gage Bar |
SPECIFICATIONS
| Maximum Gross Trailer Weight | 110,000 lbs. (49,895 kg) | |
| Maximum Tongue Weight | 20,000 lbs. (9,072 kg) | |
| Ultimate Latch Capacity | 60,000 lbs. (27,216 kg) | |
| Maximum Eye X-Section | 1 13/16 in. (46 mm) | |
| Minimum Eye Opening | 2 3/8 in. (60 mm) | |
| Model Weight | 32.9 lbs (14.9 kg) |
-
