Description
MODELS
| Model # | Part # | Description |
| 1300 | 10005668 | 1300 Coupling & 271 Thimble |

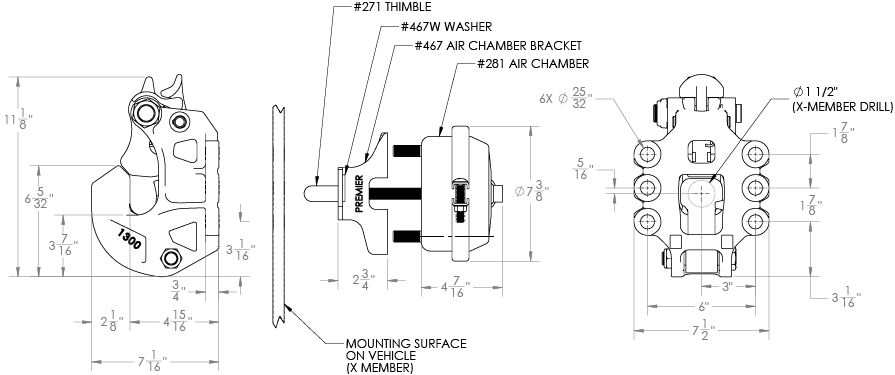

| 1300A | 10006049 | 1300 Coupling, 502 Bolt Kit, 281 Air Chamber, 467 Air Chamber Adapter Bracket, 271 Thimble |
| 1300A-2 | 10000107 | Same as 1300A, without the 502 Bolt Kit |
KIT COMPONENTS & ACCESSORY PARTS
| Model # | Part # | Description |
| 271 | 10000107 | Thimble |
| 281 | 10000116 | Air Chamber, Type 24 |
| 267 | 10000098 | Air Chamber Adapter Bracket |
| 502 | 10000149 | Bolt Kit |
| 2000PK | 10000737 | Parts Kit |
| 14014 | 10000062 | Wear Gage |
SPECIFICATIONS
| Maximum Gross Trailer Weight | 110,000 lbs. (49,865 kg) | |
| Maximum Tongue Weight | 20,000 lbs. (9,072 kg) | |
| Ultimate Latch Capacity | 60,000 lbs. (27,216 kg) | |
| Maximum Eye X-Section | 1 13/16 in. (46 mm) | |
| Minimum Eye Opening | 2 3/8 in. (60 mm) | |
| Model Weight | 30.5 lbs (13.60 kg) |
-
