Description
MODELS
| Model # | Part # | Description |

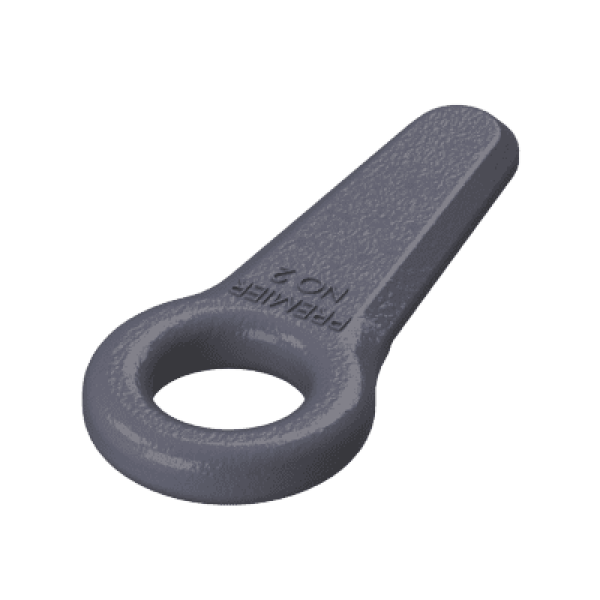

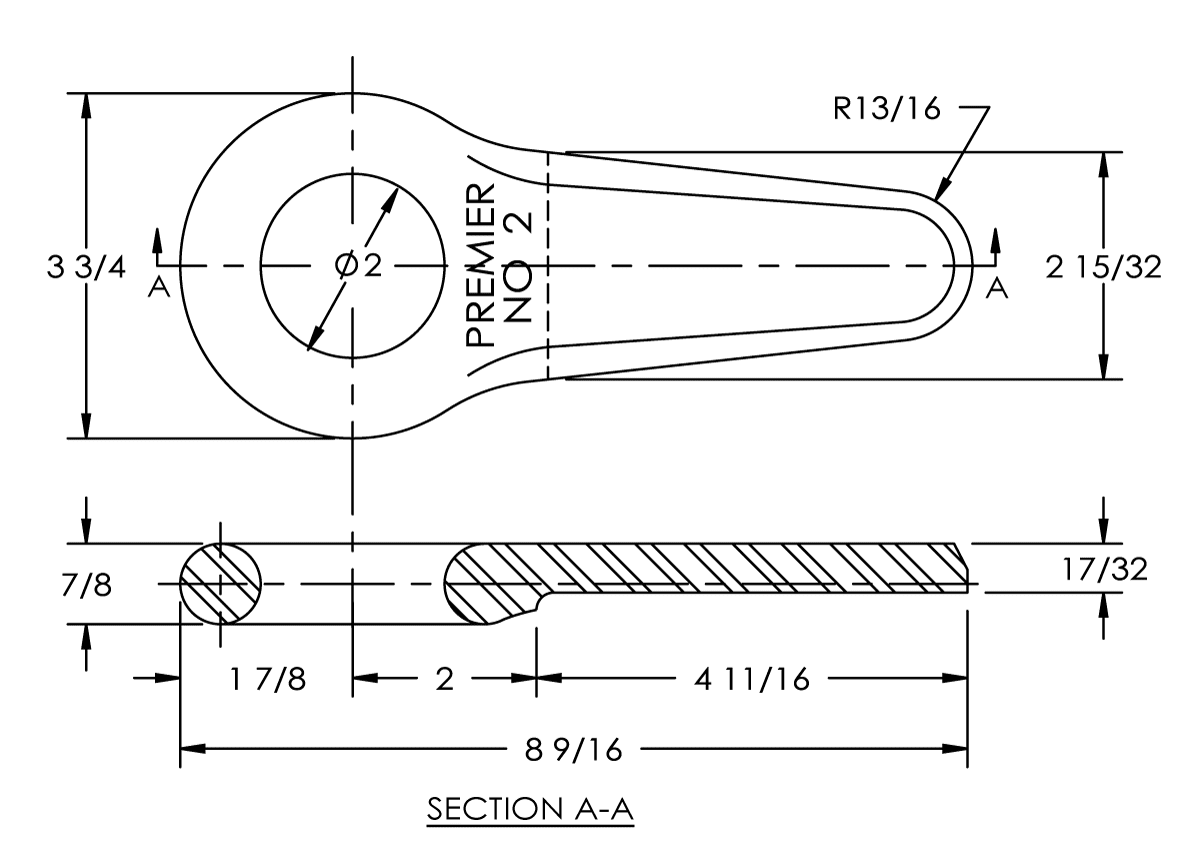

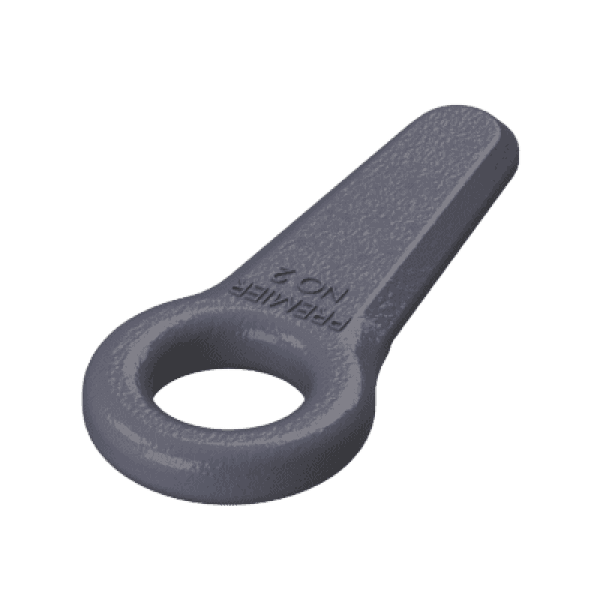

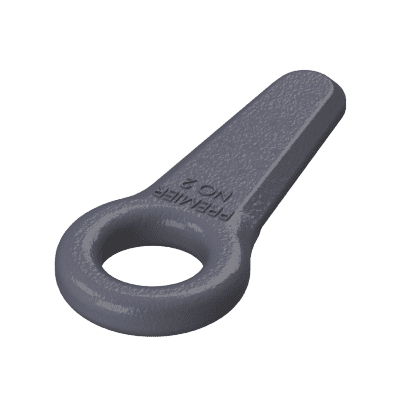

| 2 | 10000732 | Drawbar Eye, Weld-On, 2" ID |
SPECIFICATIONS
| Maximum Gross Trailer Weight | 12,000 lbs. (5,443 kg) | |
| Maximum Tongue Weight | 1,800 lbs. (816 kg) | |
| Inside Diameter | 2 in. (51 mm) | |
| Unit Weight | 3 lbs. (1.4 kg) |
Below are the Compatible Couplings, to see the full reference chart click here.
-
