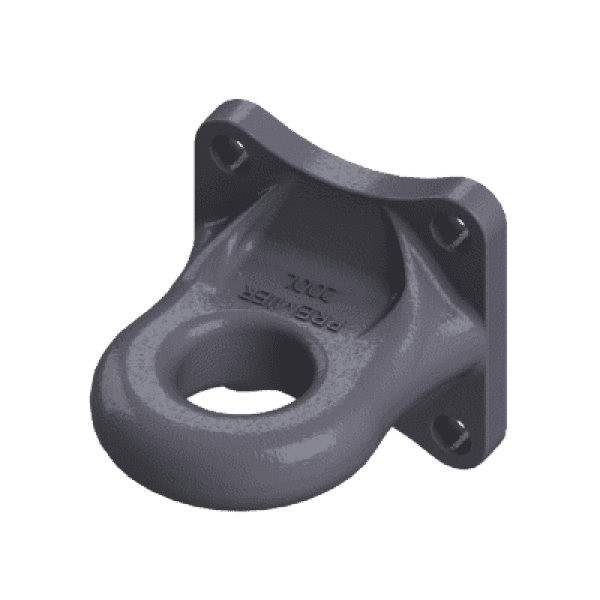

200L Bolt-On Drawbar Eye

Description

MODELS

Model #	Part #	Description
200L	10000741	Drawbar Eye, Bolt-On, 2 3/8" ID

ACCESSORY PARTS

Model #	Part #	Description
507	10000154	Bolt Kit
14005	10000053	Wear Gage

SPECIFICATIONS

Maximum Gross Trailer Weight	100,000 lbs. (45,359 kg)
Maximum Tongue Weight	15,000 lbs. (6,804 kg)
Inside Diameter	2 3/8 in. (60 mm)
Unit Weight	17.5 lbs. (7.9 kg)

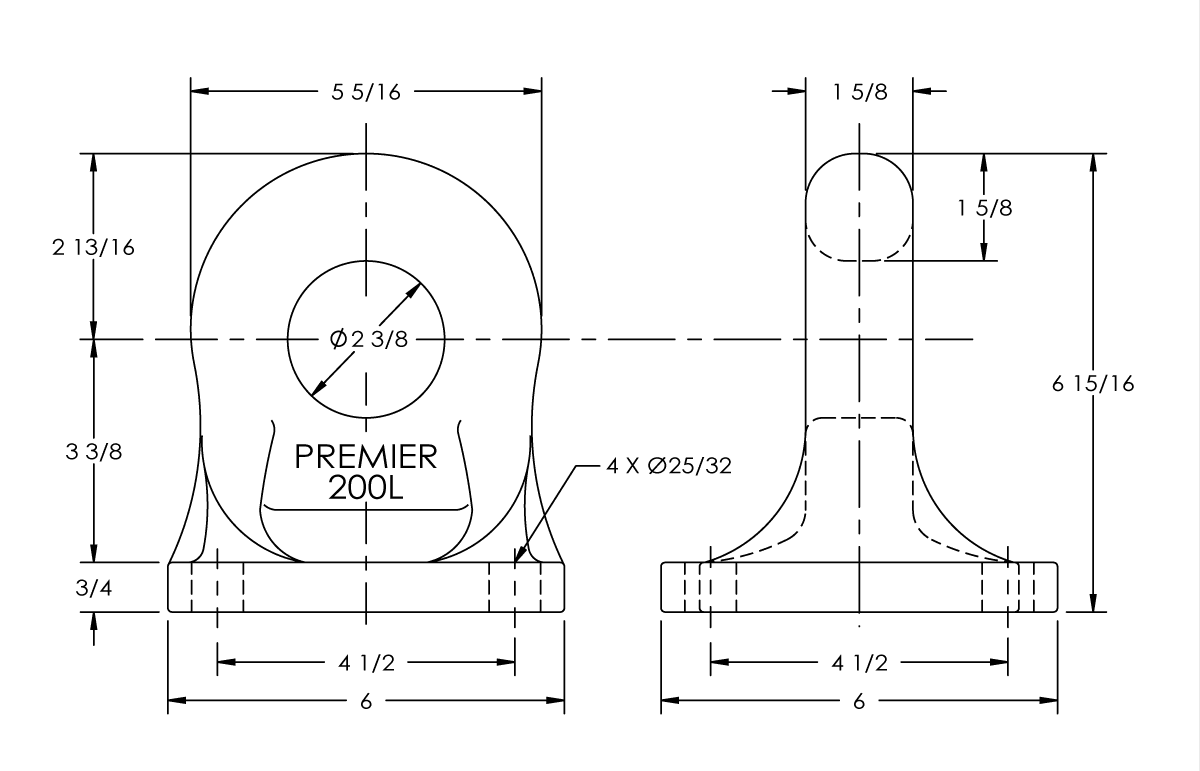

Drawings
