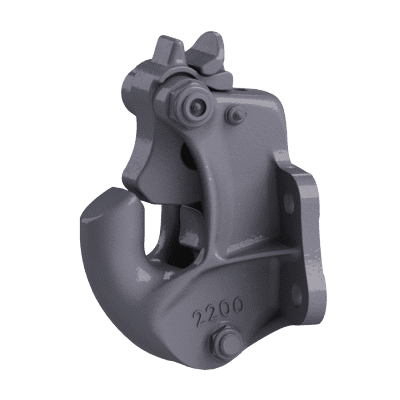

2200EL Slack Reducing Coupling

Our 2000 series just got even better! We now have an Extended Life (EL) latch option. Engineered latch lubrication ports deliver lubricant directly to the pivot points. This direct-inject system provides a rapid delivery of lubricant right where it counts. The result is smooth, consistent latch performance over an extended period of time. With a 100,000 lbs. maximum gross trailer weight and 60,000 lbs. latch capacity, this coupling is perfect for heavy-duty hauling.<

Description

MODELS

Model #	Part #	Description
2200EL	10004693	2200 Coupling with Extended Life (EL) latch direct-inject latch lubrication ports & 271 Thimble
2200ELA	10004695	2200EL Coupling, 501 Bolt Kit, 281 Air Chamber, 267 Air Chamber Adapter Bracket, 271 Thimble

KIT COMPONENTS & ACCESSORY PARTS

Model #	Part #	Description
271	10000107	Thimble
501	10000149	Bolt Kit
281	10000116	Air Chamber, Type 24
282	10000122	Air Chamber, Type 30
267	10000098	Air Chamber Adapter Bracket (2 3/4 in. overall length)
267F	10000101	Air Chamber Adapter Bracket (4 5/8 in. overall length)
267H	10000102	Air Chamber Adapter Bracket (3/4 in. overall length)
2000PK	10000737	Parts Kit
2000PK-EL	10000739	Parts Kit, Extended Life (EL)
2200PK-ELL	10000262	Parts Kit, Extended Life (EL), Low Profile Lever
438	10004779	Drawbar Guide Set (Left & Right Sides Incl.)
438L	10000131	Drawbar Guide, Left Side Only
438R	10000133	Drawbar Guide, Right Side Only
14014	10000062	Wear Gage
14026	10000071	Wear Gage, Latch Gage Bar

SPECIFICATIONS

Maximum Gross Trailer Weight	100,000 lbs. (45,359 kg)
Maximum Tongue Weight	20,000 lbs. (9,072 kg)
Ultimate Latch Capacity	60,000 lbs. (27,216 kg)
Maximum Eye X-Section	1 13/16 in. (46 mm)
Minimum Eye Opening	2 3/8 in. (60 mm)
Unit Weight	28.3 lbs. (12.8 kg)

Drawings

English Installation

2200EL Coupling Installation

French Installation

2200EL Coupling Installation
