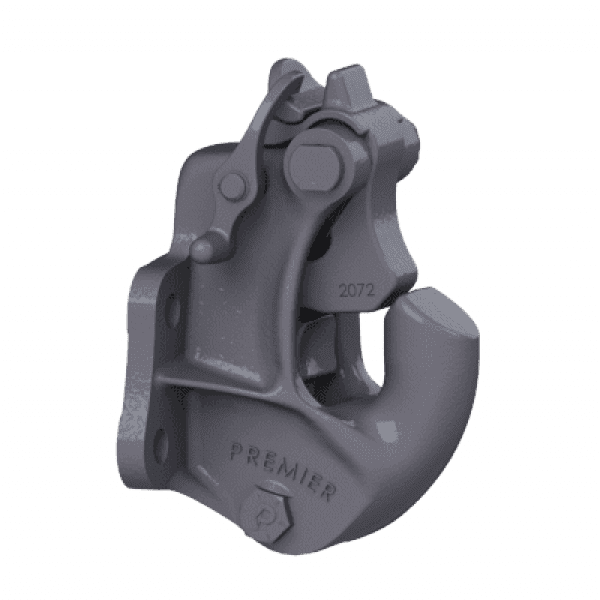

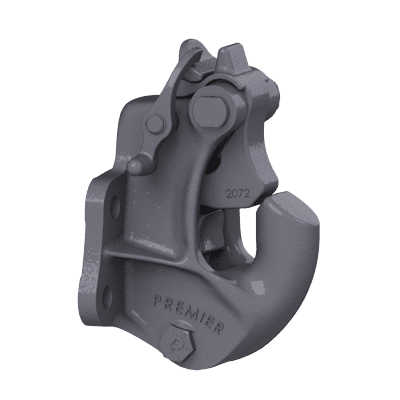

2200ELL Extended Life Reducing Coupling

The 2200ELL Coupling is the perfect combination of the 2200EL (2200 with the Extended Life latch system) and our Low Profile Lever components. The Low Profile Lever is a good option for latch clearance issues and ease of use. Please note the Low Profile Lever is only available with the 2200 Coupling. This coupling offers a maximum gross trailer weight of 100,000 lbs. and 60,000 lbs. latch capacity, making it perfect for heavy-duty applications.

Description

MODELS

Model #	Part #	Description
2200ELL	10004696	2200EL Coupling with a 2075 Low Profile Lever installed & 271 Thimble
2200ELLA	10004698	2200EL Coupling with a 2075 Low Profile Lever installed, 501 Bolt Kit, 281 Air Chamber, 267 Air Chamber Adapter Bracket, 271 Thimble

KIT COMPONENTS & ACCESSORY PARTS

Model #	Part #	Description
271	10000107	Thimble
501	10000149	Bolt Kit
281	10000116	Air Chamber, Type 24
282	10000122	Air Chamber, Type 30
267	10000098	Air Chamber Adapter Bracket (2 3/4 in. overall length)
267F	10000101	Air Chamber Adapter Bracket (4 5/8 in. overall length
267H	10000102	Air Chamber Adapter Bracket (3/4 in. overall length)
2200PK-ELL	10000262	Parts Kit, Extended Life (EL), Low Profile Lever
438	10004779	Drawbar Guide Set (Left & Right Sides Incl.)
438L	10000131	Drawbar Guide, Left Side Only
438R	10000133	Drawbar Guide, Right Side Only
14014	10000062	Wear Gage
14026	10000071	Wear Gage, Latch Gage Bar

SPECIFICATIONS

Maximum Gross Trailer Weight	100,000 lbs. (45,359 kg)
Maximum Tongue Weight	20,000 lbs. (9,072 kg)
Ultimate Latch Capacity	60,000 lbs. (27,216 kg)
Maximum Eye X-Section	1 13/16 in. (46 mm)
Minimum Eye Opening	2 3/8 in. (60 mm)
Unit Weight	29.6 (13.43 kg)

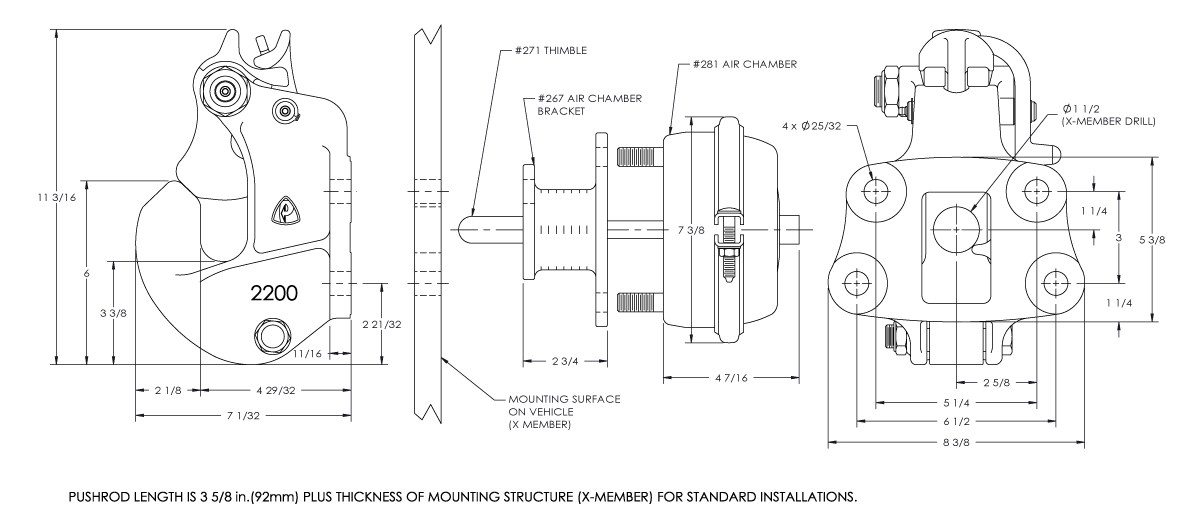

Drawings

English Installation

2200PK ELL Service Guidelines

2200ELL Coupling Installation

French Installation

2200ELL Coupling Installation

Optional Accessories

Custom Truck Accessories

2200PK-ELL Extended Life Low Profile Parts Kit

The 2200PK-ELL is your Extended Life, Low Lever parts replacement kit for all models of our 2200 coupling. Purchase yours from Premier Manufacturing today.
Custom Truck Accessories

267 Air Chamber Brackets

Premier’s 267 Air Chamber Brackets are for use with the 100, 270, 2200, and 820EL Slack Reducing Couplings. Model # 267 is the standard, however, they are available in three lengths to meet your particular mounting structure requirements. Check out the Optional Accessories tab below for additional installation components and order from Premier today!
Custom Truck Accessories

271 Thimbles

Premier’s 271 Thimbles are highly wear resistant. They are used on the end of the pushrod …
Custom Truck Accessories

281 & 282 Air Chambers

Premier’s 281 & 282 are not your typical Air Chambers! They are built to last in the rigorous service of …
Custom Truck Accessories

Bolt Kits

Premier’s individually packaged Bolt Kits make the hardware selection for your Coupling and/or Drawbar Eye fast and easy. All kits (except 159** & 511**) use coarse threaded Grade-8 fasteners and Grade-C crimp style locknuts, for a strong and secure mounting system. You can access the Installation, Inspection, Operation, and Maintenance guides which contain important information on each of our …
Custom Truck Accessories

Drawbar Guides

Premier’s Drawbar Guides act as an aid to operators when hooking up equipment. These guides are cast from high strength steel and are easily installed by welding to the rear cross member. Drawbar Guides can be purchased individually (left or right sides only) and as a complete set. Check out the models listed below and the couplings they are …
Custom Truck Accessories

Wear Gages

<span data-sheets-value="{"1":2,"2":"To determine wear limits, Premier Manufacturing created wear gages that help judge the useful life of couplings, pintle hitches, and drawbar eyes. Available as a complete kit or individually, these gages are easy to use and are a must for maintenance managers and safety personnel.\nIn accordance with Premier Manufacturing and the Federal Motor Carrier Safety Regulations, these were ...
