Description
MODELS
| Model # | Part # | Description |

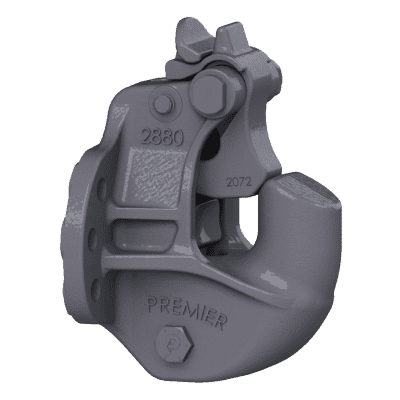

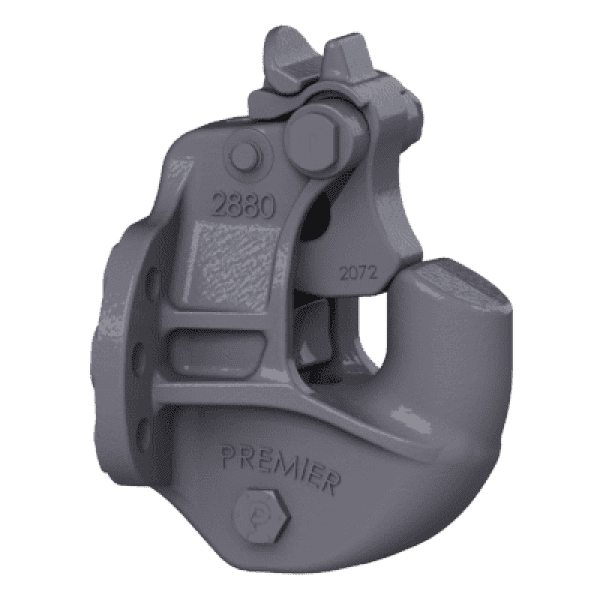

| 2880 | 10004742 | 2880 Coupling & 271 Thimble |

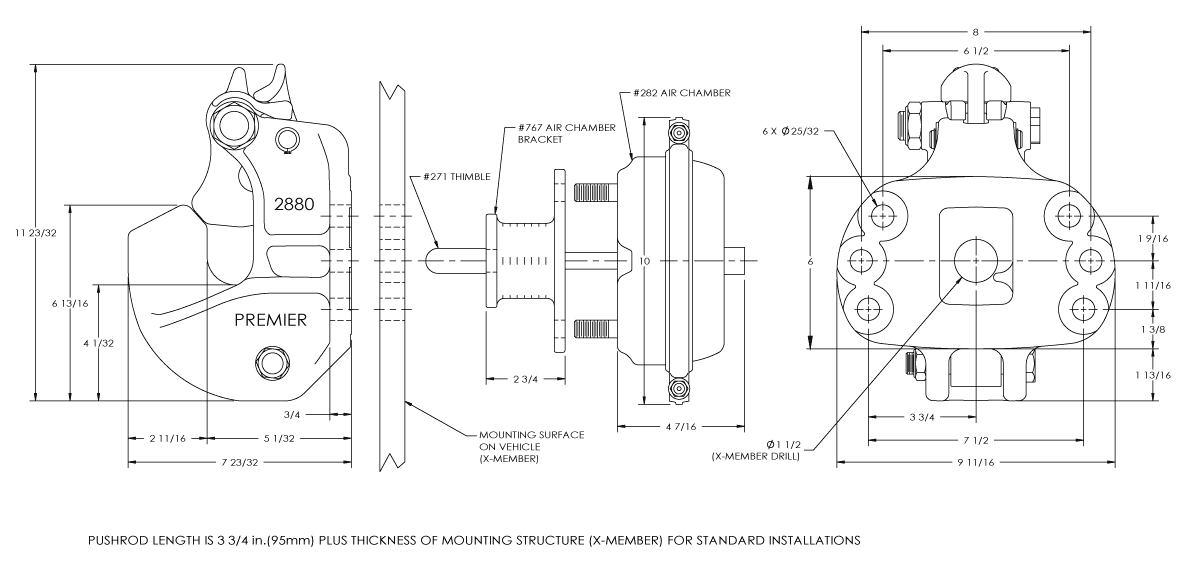

| 2880A | 10004744 | 2880 Coupling, 511 Bolt Kit, 282 Air Chamber, 767 Air Chamber Adapter Bracket, 271 Thimble |
| 2880EL | 10004745 | 2880 Coupling with Extended Life (EL) latch direct-inject latch lubrication ports |
| 2880ELA | 10004747 | 2880EL Coupling, 511 Bolt Kit, 282 Air Chamber, 767 Air Chamber Adapter Bracket, 271 Thimble |
KIT COMPONENTS & ACCESSORY PARTS
| Model # | Part # | Description |
| 271 | 10000107 | Thimble |
| 282 | 10000122 | Air Chamber, Type 30 |
| 511 | 10000158 | Bolt Kit |
| 767 | 10000180 | Air Chamber Adapter Bracket |
| 2000PK | 10000737 | Parts Kit |
| 2000PK-EL | 10000739 | Parts Kit, Extended Life (EL) |
| 14038 | 10000081 | Wear Gage |
| 14026 | 10000071 | Wear Gage, Latch Gage Bar |
SPECIFICATIONS
| *Maximum Gross Trailer Weight | *170,000 lbs. *(77,111 kg) | |
| Maximum Tongue Weight: | 30,000 lbs. (13,608 kg) | |
| Ultimate Latch Capacity: | 60,000 lbs. (27,216 kg) | |
| Maximum Eye X-Section: | 1 13/16 in. (46 mm) | |
| Minimum Eye Opening: | 3 in. (76 mm) | |
| Unit Weight: | 42.1 lbs. (19.1 kg) | |
| * MUST USE THE 511 Bolt Kit TO REACH 170,000 lb MAX GTW CAPACITY. |
-
Custom Truck Accessories
2000PK Parts Kit
The 2000PK Parts Kit is your parts replacement kit for our 2200, 2300, 2300B, 2400, 2400H, and 2880 Couplings. It will now be your go to parts kit for …
Custom Truck Accessories
2000PK-EL Extended Life Parts Kit
The 2000PK-EL parts kit is your Extended Life parts replacement kit for our 2200, 2300, 2400, 2400H, and 2880 couplings. Buy your kit today from Premier Manufacturing.
Custom Truck Accessories
271 Thimbles
Premier’s 271 Thimbles are highly wear resistant. They are used on the end of the pushrod …
Custom Truck Accessories
281 & 282 Air Chambers
Premier’s 281 & 282 are not your typical Air Chambers! They are built to last in the rigorous service of …
Custom Truck Accessories
467 & 767 Air Chamber Brackets
Premier’s 467 & 767 Air Chamber Brackets are designed for use with the Slack Reducing Coupling models listed below. The 467 series is available in three lengths to meet your particular mounting structure requirements. Check out the Optional Accessories tab below for additional installation components and order from Premier today!
Custom Truck Accessories
Bolt Kits
Premier’s individually packaged Bolt Kits make the hardware selection for your Coupling and/or Drawbar Eye fast and easy. All kits (except 159** & 511**) use coarse threaded Grade-8 fasteners and Grade-C crimp style locknuts, for a strong and secure mounting system. You can access the Installation, Inspection, Operation, and Maintenance guides which contain important information on each of our …
Custom Truck Accessories
Wear Gages
<span data-sheets-value="{"1":2,"2":"To determine wear limits, Premier Manufacturing created wear gages that help judge the useful life of couplings, pintle hitches, and drawbar eyes. Available as a complete kit or individually, these gages are easy to use and are a must for maintenance managers and safety personnel.\nIn accordance with Premier Manufacturing and the Federal Motor Carrier Safety Regulations, these were ...Below are the Compatible Drawbar Eyes, to see the full reference chart click here.
-
Drawbar Eyes
309 Weld-On Drawbar Eye
The 309 Weld-On Drawbar Eye by Premier Manufacturing boasts a maximum gross trailer weight of 150,000 lbs. Locate a distributor in your area today!Designed For: 4 in. (102 mm) round tubing -
Drawbar Eyes
307 Swivel Drawbar Eyes
Premier’s 307 Swivel Drawbar Eyes are only to be used with our Front End Housings. Bushings are not included. Check out the Optional Accessories tab to access our selection of front ends which include the housing, bushings, and washer. With a maximum gross trailer weight of 150,000 lbs., the 307 is perfect for a variety of heavy-duty …
Drawbar Eyes
305 Weld-On Drawbar Eye
The 305 Weld-On Drawbar Eye from Premier Manufacturing is designed for rectangular tubing, features a max gross trailer weight of 150,000 lbs. Order from a distributor today!
Designed For: Rectangular tubing, 2 in. x 4 in. (51 mm x 102 mm) and 4 in. x 4 in. (102 mm x 102 mm)
Drawbar Eyes
304 Weld-On Drawbar Eye
The 304 Weld-On Drawbar Eye Order from Premier Manufacturing offers a maximum gross trailer weight of 150,000 lbs and a maximum tongue weight of 15,000 lbs. Find a distributor today!
Drawbar Eyes
300HD Bolt-On Drawbar Eye
Premier’s 300HD Bolt-On Drawbar Eye Premium Manufacturing that has the same 3” ID as our 300 Drawbar Eye. Our 300 uses 3/4” mounting hardware. Whereas, the 300HD uses 7/8” mounting hardware and has a higher tongue capacity. Check out the Optional Accessories tab below for bolt kit and wear gage information.
Drawbar Eyes
300 Bolt-On Drawbar Eye
Premier Manufacturing’s 300 bolt-on drawbar eye is an exceptional addition to your trucking needs. It features a maximum gross trailer weight of 100,000 lbs. and a maximum tongue weight of 15,000 lbs. Don’t forget to check the corresponding bolt kit (model# 507) and wear gage (model # 14032) listed under the Optional Accessories tab below. Order from a distributor today!
<button ...
Drawbar Eyes
245DB-3 Bolt-On Drawbar Eye
The 245DB-3 Bolt-On Drawbar Eye is an exceptional tool for your hauling needs. With a maximum gross trailer weight of 100,000 lbs. and a maximum tongue weight of 8,000 lbs., it is perfect for a variety of mid-to-heavy-duty applications. Don’t forget to check the corresponding wear gage (model # 14005) listed under the Optional Accessories tab below.
<button class="cswidget" data-csi_utm_campaign="[]" data-csi_utm_medium="[]" ...
Drawbar Eyes
238DB Bolt-On Drawbar Eye Product Discontinued
The 238DB Bolt-On Drawbar Eye is an exceptional tool for your hauling needs. With a maximum gross trailer weight of 100,000 lbs. and a maximum tongue weight of 8,000 lbs., it is perfect for a variety of mid-to-heavy-duty applications. Don’t forget to check the corresponding wear gage (model # 14005) listed under the Optional Accessories tab below.
<button class="cswidget" data-csi_utm_campaign="[]" data-csi_utm_medium="[]" ...
Additional information
| MATERIAL | |
|---|---|
| SLACK REDUCED | |
| MGTW |
