Description
MODELS
| Model # | Part # | Description |

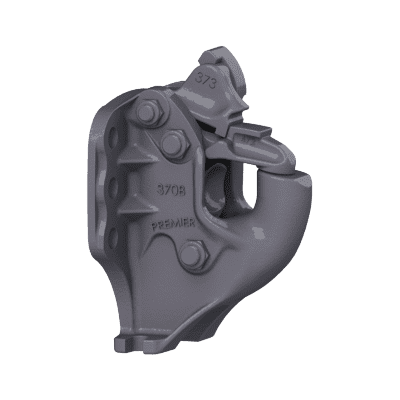

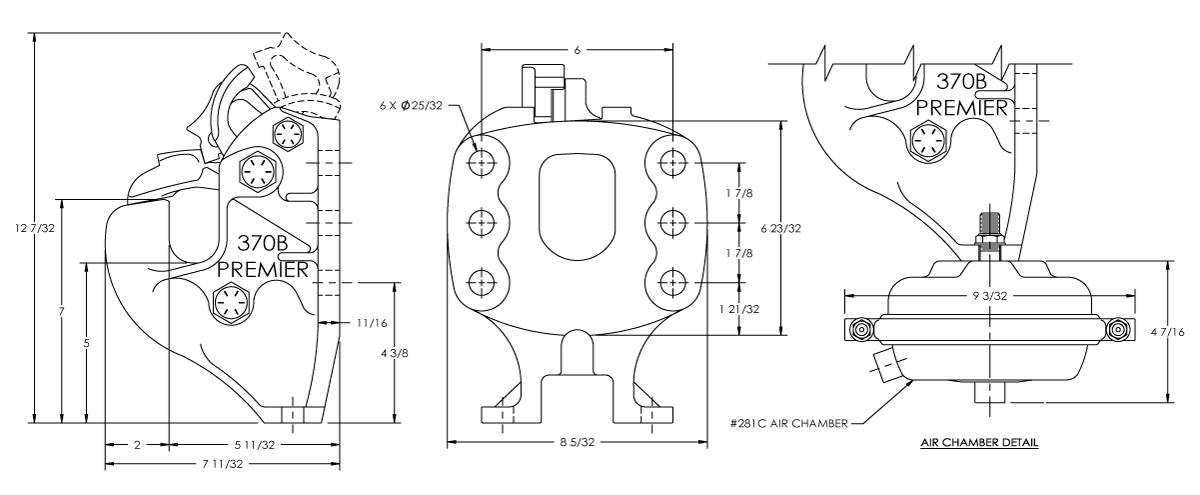

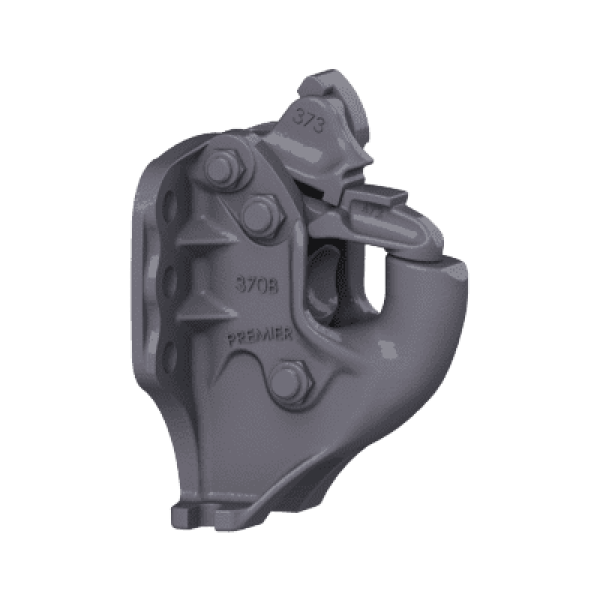

| 370B | 10004764 | 370B Coupling & 271 Thimble |
| 370BC | 10004765 | 370B Coupling, 503 Bolt Kit, 281C Air Chamber, 271 Thimble |
KIT COMPONENTS & ACCESSORY PARTS
| Model # | Part # | Description |
| 271 | 10000107 | Thimble |
| 503 | 10000151 | Bolt Kit |
| 281C | 10000117 | Air Chamber, Type 24, Bottom Mount |
| 370PK | 10000325 | Parts Kit |
| 378 | 10004766 | Drawbar Guide Set (Left & Right Sides Incl.) |
| 378L | 10000124 | Drawbar Guide, Left Side Only |
| 378R | 10000129 | Drawbar Guide, Right Side Only |
| 14011 | 10000059 | Wear Gage |
| 14026 | 10000071 | Wear Gage, Latch Gage Bar |
SPECIFICATIONS
| Maximum Gross Trailer Weight | 90,000 lbs (40,823 kg) | |
| Maximum Tongue Weight | 18,000 lbs. (8,165 kg) | |
| Ultimate Latch Capacity | 20,000 lbs. (9,072 kg) | |
| Maximum Eye X-Section | 1 13/16 in. (46 mm) | |
| Minimum Eye Opening | 2 3/8 in. (60 mm) | |
| Unit Weight | 31 lbs. (14.0 kg) |
-
