fe-435-2

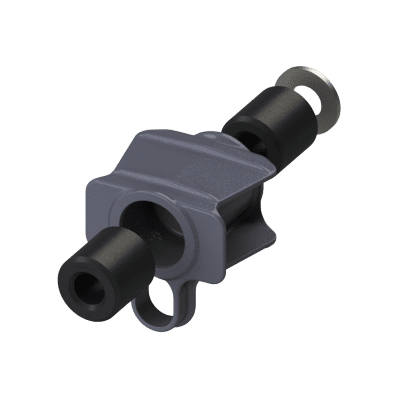

435 & 435A Front End Housings

The 435 & 435A Front End Housings were designed for use with our 207S, 307S, and 405S Swivel Drawbar Eyes only. Perfect for your truck and trailer needs, they are available with either rubber or poly bushings.

Accepts 2 in. x 4 in. (51 mm x 102 mm) rectangular tubing or standard channel

Category:

Description

MODELS

Model #Part #DescriptionCompatible Drawbar Eyes
43510000861436 Housing, 349 Washer, 437 Rubber Bushings (2)207S, 307S, 405S
435A10000863436 Housing, 349 Washer, 437A Poly Bushings (2)207S, 307S, 405S

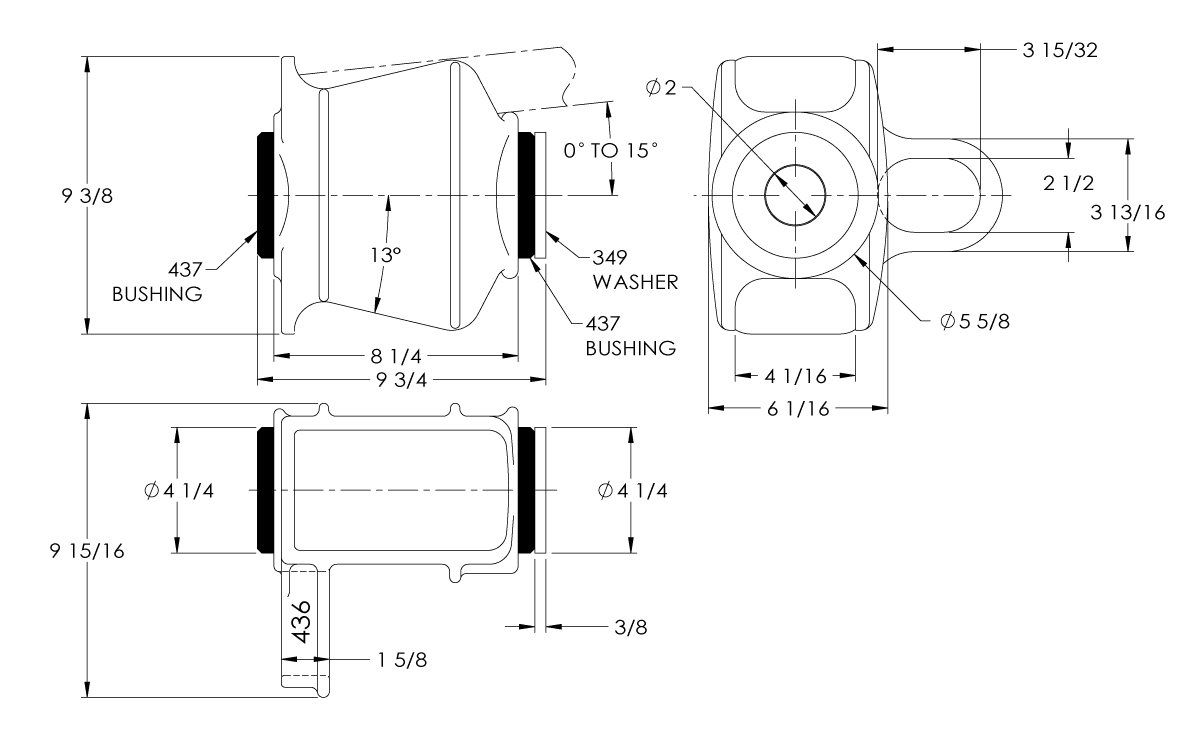

436 HOUSING SPECIFICATIONS

Outside Diameter:
Length:
Unit Weight:36.7 lbs. (16.6 kg)

REPLACEMENT PARTS

Model #Part #Description
34910000858Washer
43610000864Housing
43710000866Bushing, Rubber
437A10000867Bushing, Poly

REPLACEMENT PART SPECIFICATIONS

Model #349437437A
Inside Diameter:2 1/16 in.2 in.2 in.
Outside Diameter:4 1/4 in.4 1/4 in.4 1/4 in.
Length:4 1/2 in.4 1/2 in.

Optional Accessories

  • Premier 437 vehicle part
    Custom Truck Accessories

    437 Rubber Bushing

    Premier’s 437 Rubber Bushing can be ordered for replacement in our 435 and 536 Front End Assemblies. Rubber is our standard bushing material and is suitable for most applications. However, you can check out the Similar or Alternatives tab below for ordering information on poly bushings which have a longer service life.
    NOTE:  Each Front End Assembly requires …

  • A437 Car Part
    Custom Truck Accessories

    437A Polyurethane Bushing

    The 437A Poly Bushing can be ordered for replacement in our 435A and 536B Front End Assemblies. Polyurethane bushings typically yield 2 to 3 times the service life of rubber. They are ideal and highly recommended for use in off-road and/or severe applications. Check out the Similar or Alternatives tab below to access important service information on the 435 …

Compatible Drawbar Eyes

  • e-207
    Drawbar Eyes

    207 Swivel Drawbar Eyes

    Our 207 Swivel Drawbar Eyes are only to be used with Premier Front End Housings.  Bushings are not …

  • E307 Vehicle Parts
    Drawbar Eyes

    307 Swivel Drawbar Eyes

    Premier’s 307 Swivel Drawbar Eyes are only to be used with our Front End Housings.  Bushings are not included.  Check out the Optional Accessories tab to access our selection of front ends which include the housing, bushings, and washer.  With a maximum gross trailer weight of 150,000 lbs., the 307 is perfect for a variety of heavy-duty …

  • e-405
    Drawbar Eyes

    405 Swivel Drawbar Eyes

    Our 405 Swivel Drawbar Eyes are only to be used with Premier Front End Housings.  Bushings are not included.  Check out the Optional Accessories tab to access our selection of front ends which include the housing, bushings, and washer.
    This Drawbar Eye is also Slack-Reducing! It can be used with Premier’s 500 Mechanical Slack Adjuster or  281 and 282 …
