47 Series Couplers

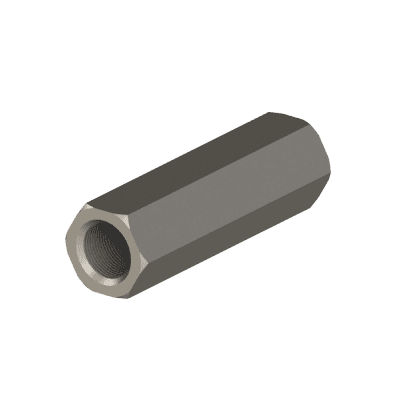

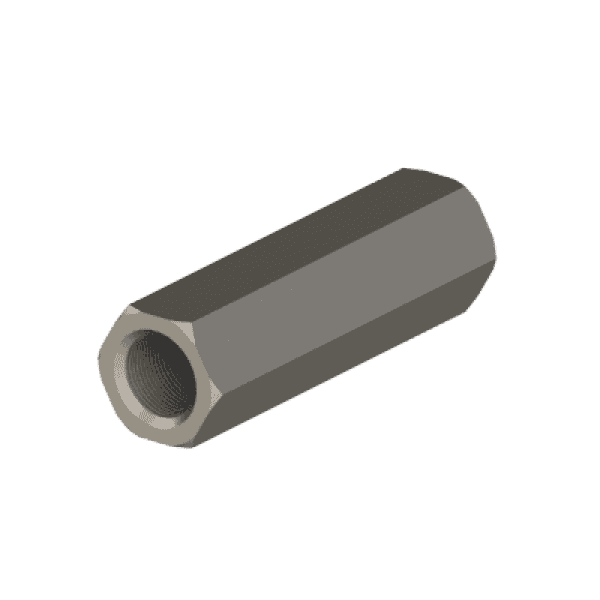

Premier’s 47 Series Couplers are used to connect the Air Chamber Pushrod to the Drawbar Eye Pushrod.  Specifically, the pushrod of a Premier Slack-Reducing Drawbar Eye (Model #’s 110, 123, 127). Be sure to check out the Accessory Parts box for additional items you may need for installation.

Description

MODELS

Model #Part #Description
4710000144Coupler
47L10000145Coupler, Left-Hand Threads
47SPL10000146Coupler

ACCESSORY PARTS

Model #Part #Description
28110000116Air Chamber, Type 24
281J10000006Jam Nut, Air Chamber Pushrod
28210000122Air Chamber, Type 30
50010000147Mechanical Slack Adjuster
52510000173Jam Nut, Drawbar Eye Pushrod
525L10000174Jam Nut, Drawbar Eye Pushrod, Left-hand threads

47 SERIES SPECIFICATIONS

Model #LengthThread
473 5/8 in. (92 mm)5/8 in.-18 NF to 3/4 in.-16 NF
47L3 5/8 in. (92 mm)5/8 in.-18 NF to 3/4 in.-16 NF, Left-hand
47SPL6 in. (152 mm)5/8 in.-18 NF to 3/4 in.-16 NF
