Description
MODELS
| Model # | Part # | Description | |
| 780 | 10004801 | 780 Coupling & 271 Thimble | Discontinued - Limited Quantities - No Longer Available once Inventory is Depleted |

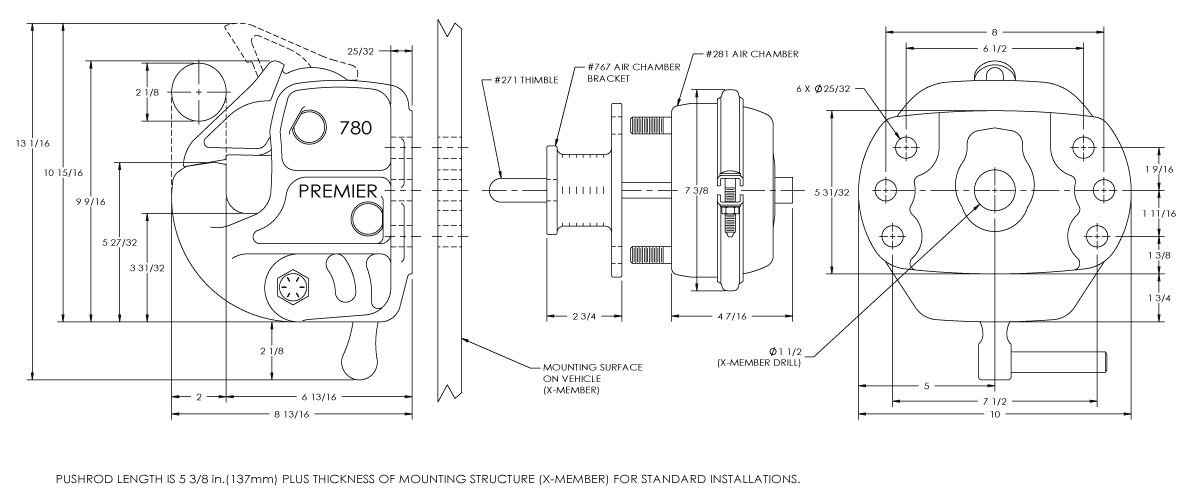

| 780A | 10004802 | 780 Coupling, 502 Bolt Kit, 281 Air Chamber, 767 Air Chamber Adapter Bracket, 271 Thimble | Discontinued - Limited Quantities - No Longer Available once Inventory is Depleted |
ACCESSORY & REPLACEMENT PARTS
| Model # | Part # | Description |
| 271 | 10000107 | Thimble |
| 281 | 10000116 | Air Chamber, Type 24 |
| 282 | 10000122 | Air Chamber, Type 30 |
| 502 | 10000150 | Bolt Kit |
| 767 | 10000180 | Air Chamber Adapter Bracket |
| 14011 | 10000059 | Wear Gage |
| 14014 | 10000062 | Wear Gage |
| 14026 | 10000071 | Wear Gage, Latch Gage Bar |
SPECIFICATIONS
| Maximum Gross Trailer Weight | 90,000 lbs. (40,823 kg) | |
| Maximum Tongue Weight | 18,000 lbs. (8,165 kg) | |
| Ultimate Latch Capacity | 30,000 lbs. (13,608 kg) | |
| Maximum Eye X-Section | 1 13/16 in. (46 mm) | |
| Minimum Eye Opening | 2 3/8 in. (60 mm) | |
| Unit Weight | 45.3 lbs. (20.5 kg) |
-
