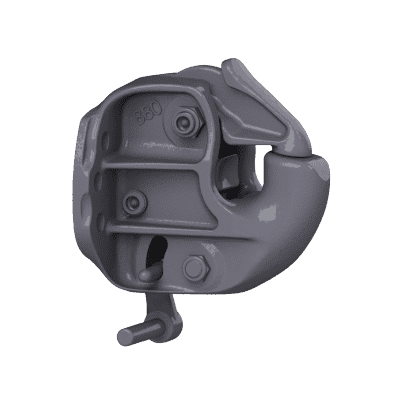

880 Slack Reducing Coupling | Premier Manufacturing

Description

MODELS

Model #	Part #	Description	Recommended Replacement
880		Discontinued - No Longer Available	2880
880A		Discontinued - No Longer Available	2880A

ACCESSORY & REPLACEMENT PARTS

Model #	Part #	Description
271	10000107	Thimble
282	10000122	Air Chamber, Type 30
511	10000158	Bolt Kit
767	10000180	Air Chamber Adapter Bracket
880RK	10000392	Repair Kit	Limited Quantities - No Longer Available once Inventory is Depleted
14020	10000068	Wear Gage
14026	10000071	Wear Gage, Latch Gage Bar

SPECIFICATIONS

Maximum Gross Trailer Weight	150,000 lbs. (68,039 kg)
Maximum Tongue Weight	30,000 lbs. (13,608 kg)
Ultimate Latch Capacity	30,000 lbs. (13,608 kg)
Maximum Eye X-Section	1 13/16 in. (46 mm)
Minimum Eye Opening	3 in. (76 mm)
Unit Weight	47.5 lbs. (21.5 kg)

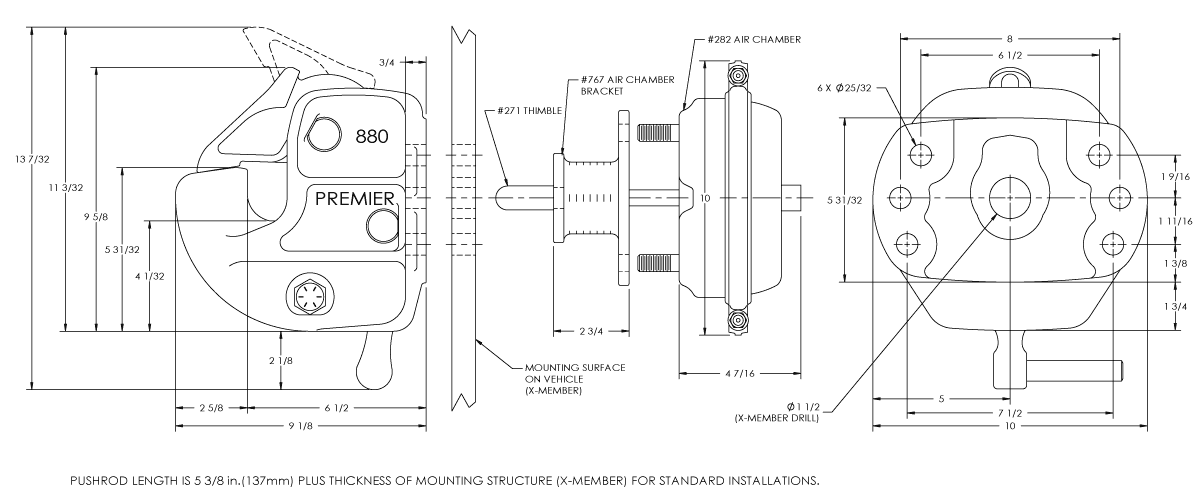

Drawings

Installation

880 Coupling Installation

880 Coupling Service Guidelines

Optional Accessories

Custom Truck Accessories

271 Thimbles

Premier’s 271 Thimbles are highly wear resistant. They are used on the end of the pushrod …
Custom Truck Accessories

281 & 282 Air Chambers

Premier’s 281 & 282 are not your typical Air Chambers! They are built to last in the rigorous service of …
Custom Truck Accessories

467 & 767 Air Chamber Brackets

Premier’s 467 & 767 Air Chamber Brackets are designed for use with the Slack Reducing Coupling models listed below. The 467 series is available in three lengths to meet your particular mounting structure requirements. Check out the Optional Accessories tab below for additional installation components and order from Premier today!
Custom Truck Accessories

880RK Repair Kit

The 880RK Repair Kit is to replace components in our 880 Coupling . Although this coupling is discontinued and is no longer available, we still offer the 880RK to repair and maintain units on the road today. Inventory is limited to quantities on hand. Interested in a replacement coupling? Check out the 2880 which has the same bolt-hole pattern.
